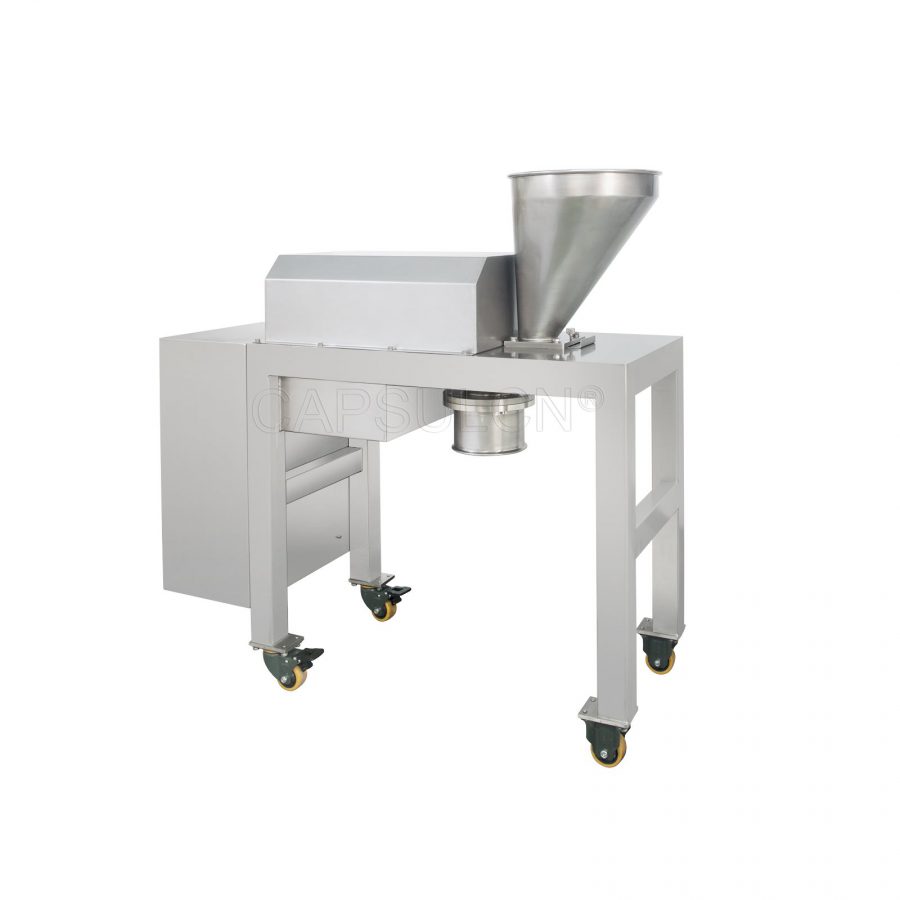

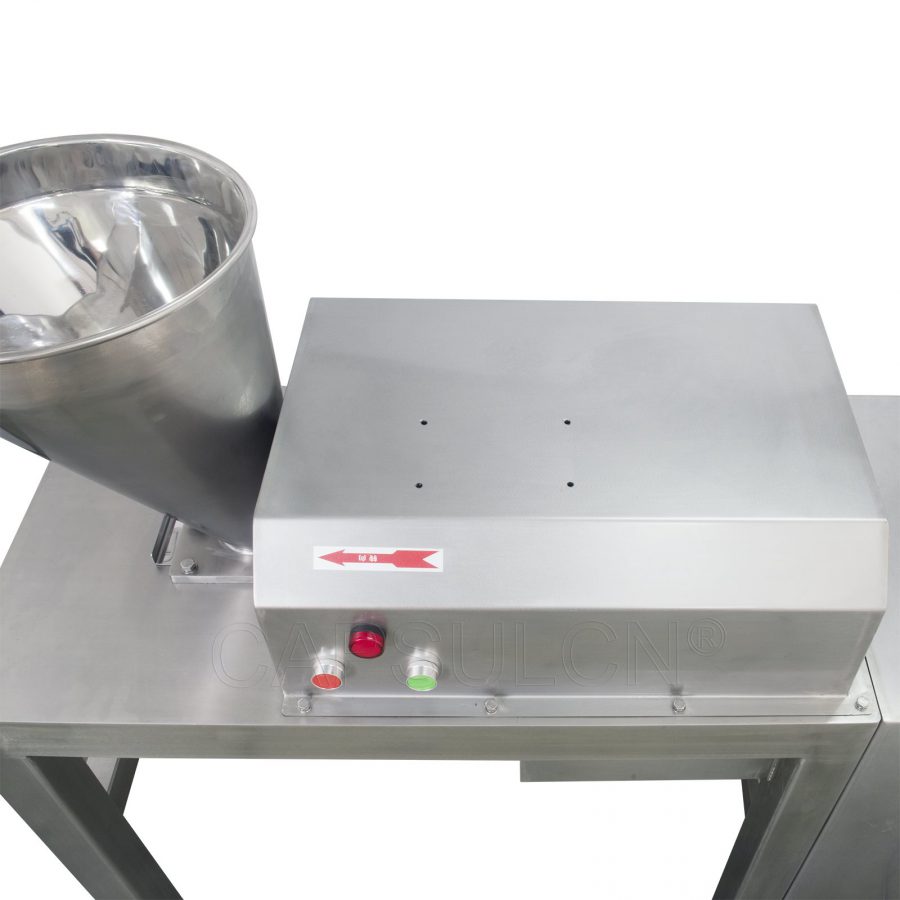

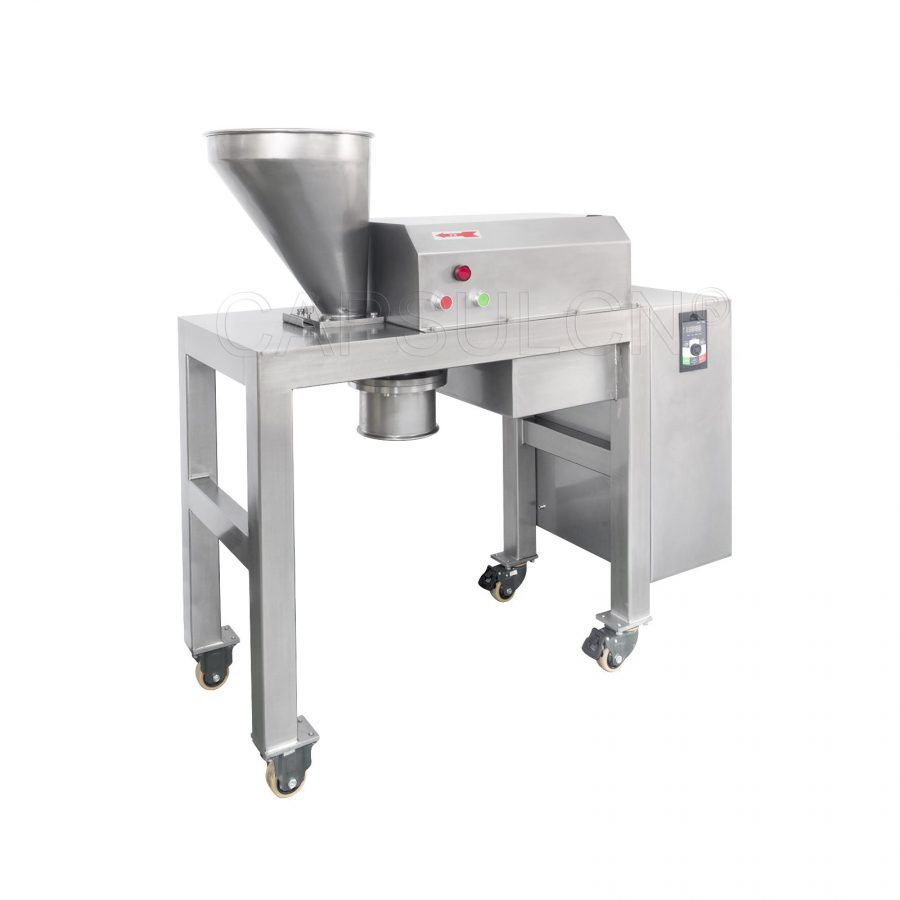

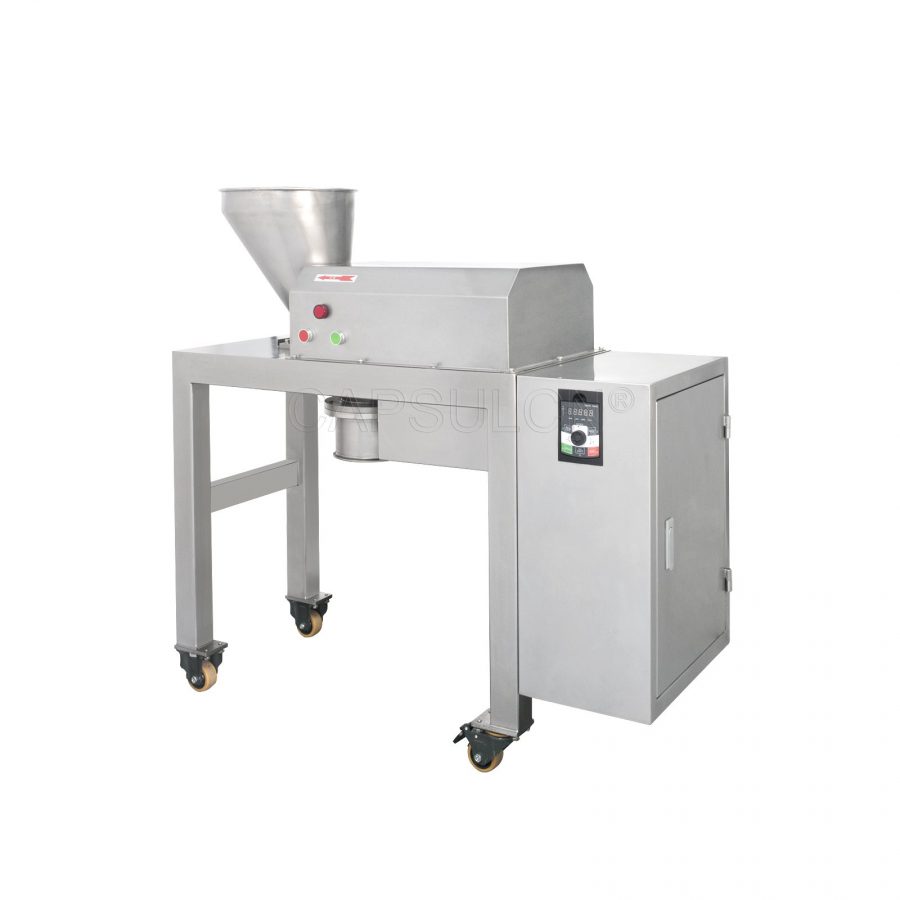

Cone Mill Machine
Automatic Continuous Mill Herb Grinder With Dust Collector SF-D
A cone mill is a machine that is used to reduce the size of material uniformly. It is named cone because of its shape and it can come in various diameters. It has a wider opening that allows the matter to be ground to be placed and a narrow ending for the exit of finer materials. Besides, the cone mill is suited for use in wet, dry or fine milling in the food, chemicals, and pharmaceutical industries. You can also find a cone mill in consumer goods manufacturing industries where fine crushing is needed. A cone mill is easily adaptable depending on your needs or what you want to use it on. All you need is a change of the granulating screen. This can help you get a cost-cutting as well as a cost-effective solution to your size reduction needs. Conical screen mill or cone milling is the most efficient and beneficial method for size reduction in powder processing industries.
Introduction
Cone Mill are widely used in pharmaceutical, food, and fine chemical processing industries. It is completely made of high quality stainless steel and built strictly conformed to the current cGMP standard. It is one of the most necessary solid dosage processing equipment in re-sizing the granules, re-granulating unqualified tablets or retrieve powder from unqualified capsules.

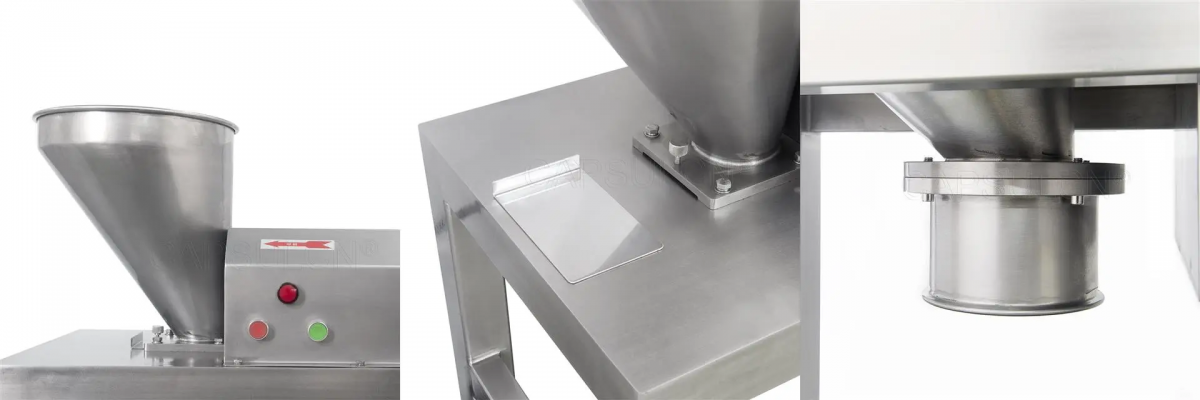

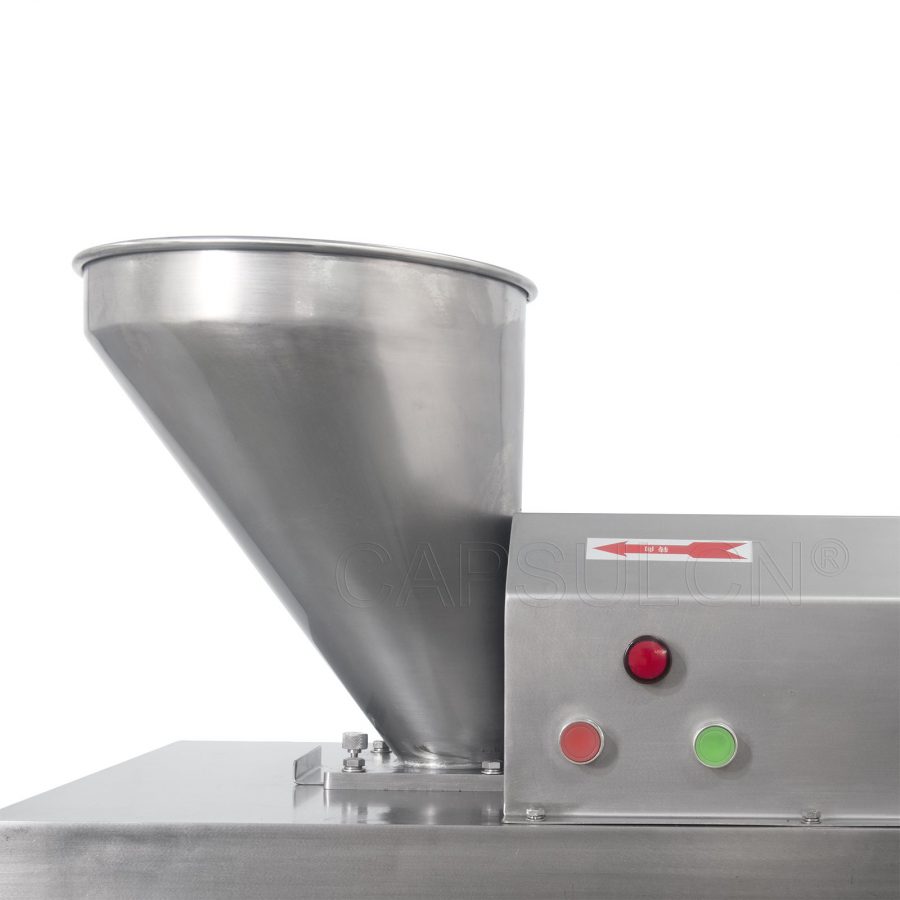

The material to be processed enters into the feed inlet of grinding and granulating machine, which drops into the conical sieve chamber. The rotary knife rotates a whirling action to the material, and place the granules to the sieve mesh surface by centrifugal force. The granules are grinded into particles by the shearing action produced by the rotary knife, the sieve mesh, and discharged through the sieve apertures. The size of particles can be adjusted by the sieve meshes as shown below.
Remarks
- All you need is a change of the granulating screen. This can help you get a cost-cutting as well as a cost-effective solution to your size reduction needs.
- Conical screen mill or cone milling is the most efficient and beneficial method for size reduction in powder processing industries.
| Model | FZ-150 | FZ-300 | FZ-450 | FZ-700 | FZ-700 |
| Capacity | 15-150kg/hr | 30-300kg/hr | 45-450kg/hr | 70-700kg/hr | 100-1000kg/hr |
| Granularity | 6-80mesh | 6-80mesh | 6-80mesh | 6-80mesh | 6-80mesh |
| Temp. Rise (C) | <30 | <30 | <30 | <30 | <30 |
| Range of Speed | 300~3600rpm | 300~3600rpm | 300~3600rpm | 300~3600rpm | 300~3600rpm |
| Power | 1.5kw | 1.5kw | 2.2kw | 3.0kw | 5.5kw |
| Height of discharge hopper | 650mm | 650mm | 690mm | 690mm | 700mm |
| Dimension (mm) | 720*445*1345 | 810*445*1345 | 920*445*1430 | 1000*500*1530 | 1100*600*1875 |
